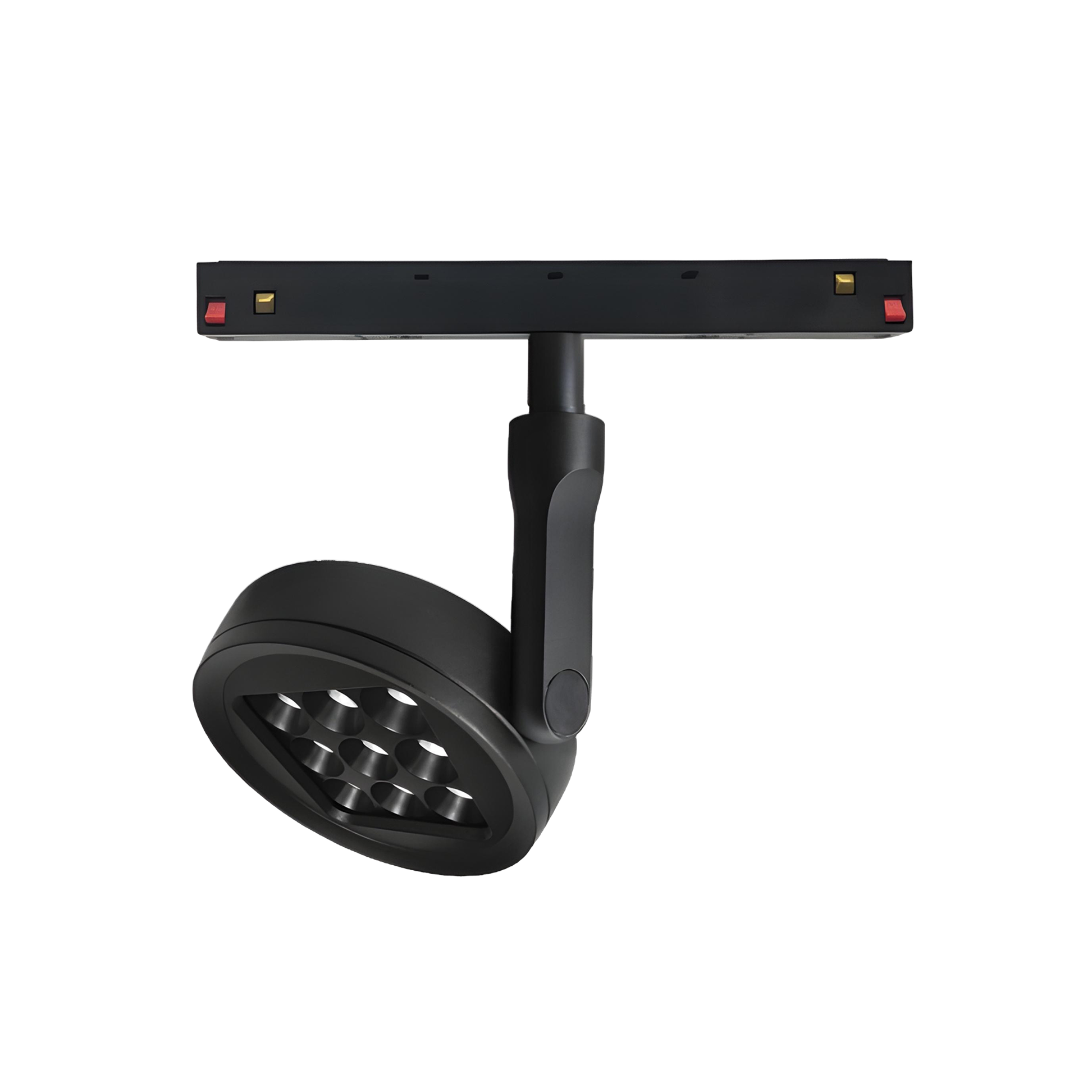

The Retina Series is a high-output magnetic spot fixture designed for intense, precision highlighting. It features a fully swiveling head, powerful segmented optics, and offers focused 24-degree or 36-degree beam angles with CRI >90 for dramatic accentuation.
For Product Description & Range
Click Here
This powerful directional module utilizes an architectural-grade true color premium LED and magnetically snaps into the DC 48V track. It is constructed with an aluminum die-cast housing and a deep-set reflector to minimize glare. The fixture provides exceptional output (10W and 20W options) and a fully Swivel head for aiming versatility. It offers two beam angle options and is Dimmable (Analogue/Dali on request), providing superior color rendering (CRI >90) at 3000K or 4000K CCT.

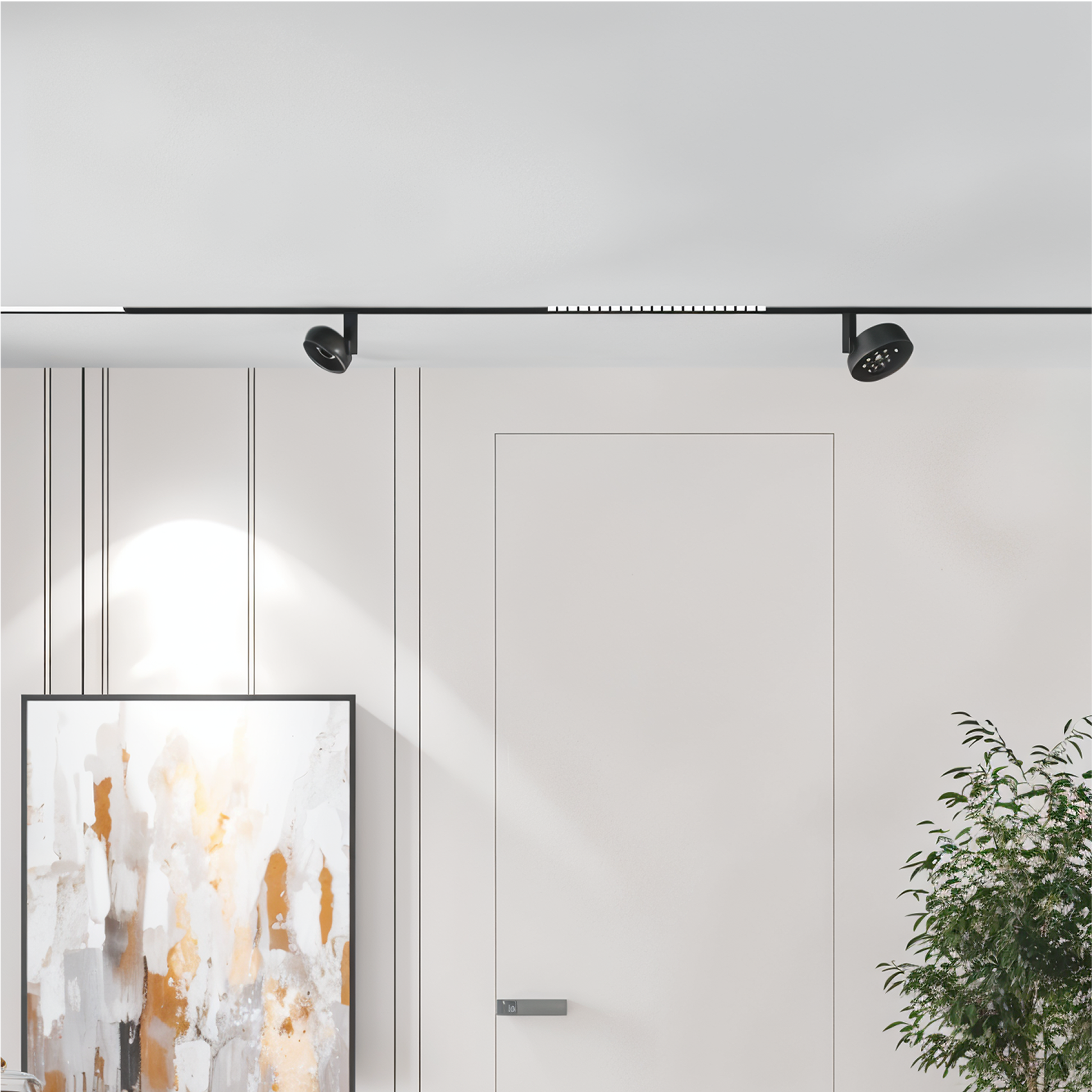

High-End Retail, Galleries with High Ceilings, Architectural Features, and Powerful Display Lighting
Ideal for projects that require maximum lumen output and precision aiming from an adaptable track system.
The 20mm MG Retina Series is the definitive choice for intense, controlled accent illumination within a modular system. This sophisticated spot module delivers the high power and sharp focus needed to define and highlight the most demanding elements of your design. Choose this high-output, swivel-capable fixture to achieve a powerful, dynamic lighting scheme where every focal point is commanded with superior clarity and professional control.
LED
: Osram
DC 48V
: DC 48V
CCT
: 3000k, 4000k
Housing Material
: Aluminium Die Cast
IP Rating
: IP 20
Beam Angle
: 24°, 36°
CRI
: >90
Swivel/Fixed
: Swivel
OPERATING TEMPERATURE
: 0-50°c
Dimmable
: Analogue / Dali (on request)
Product Finish
: Matt Black
Reflector Finish
: Matt Black
| Model | Wattage | Outer Size(mm) | |
|---|---|---|---|
| 20MM MG RETINA.4.10.MB.MB.24.7530 .30G | 10W | 75(A)x30(B)x160(C) | Where To Buy |
| 20MM MG RETINA.9.20.MB.MB.24.10535 .30G | 20W | 105(A)x35(B)x180(C) | Where To Buy |
