The Dime Slim is an ultra-thin downlight designed for general illumination, offering flexible installation in both round and square apertures. Its wide 120∘ beam angle and slim profile make it the perfect solution for uniform, ambient lighting in limited ceiling spaces.
For Product Description & Range
Scroll Down
Engineered for shallow ceiling voids, the Dime Slim delivers a broad wash of light utilizing an architectural-grade LED and a reliable driver. The fixture boasts a wide 120∘ beam angle and is constructed with durable Aluminium Die Cast housing. Available in multiple wattages and both Round and Square shapes and supports dimming via common protocols.

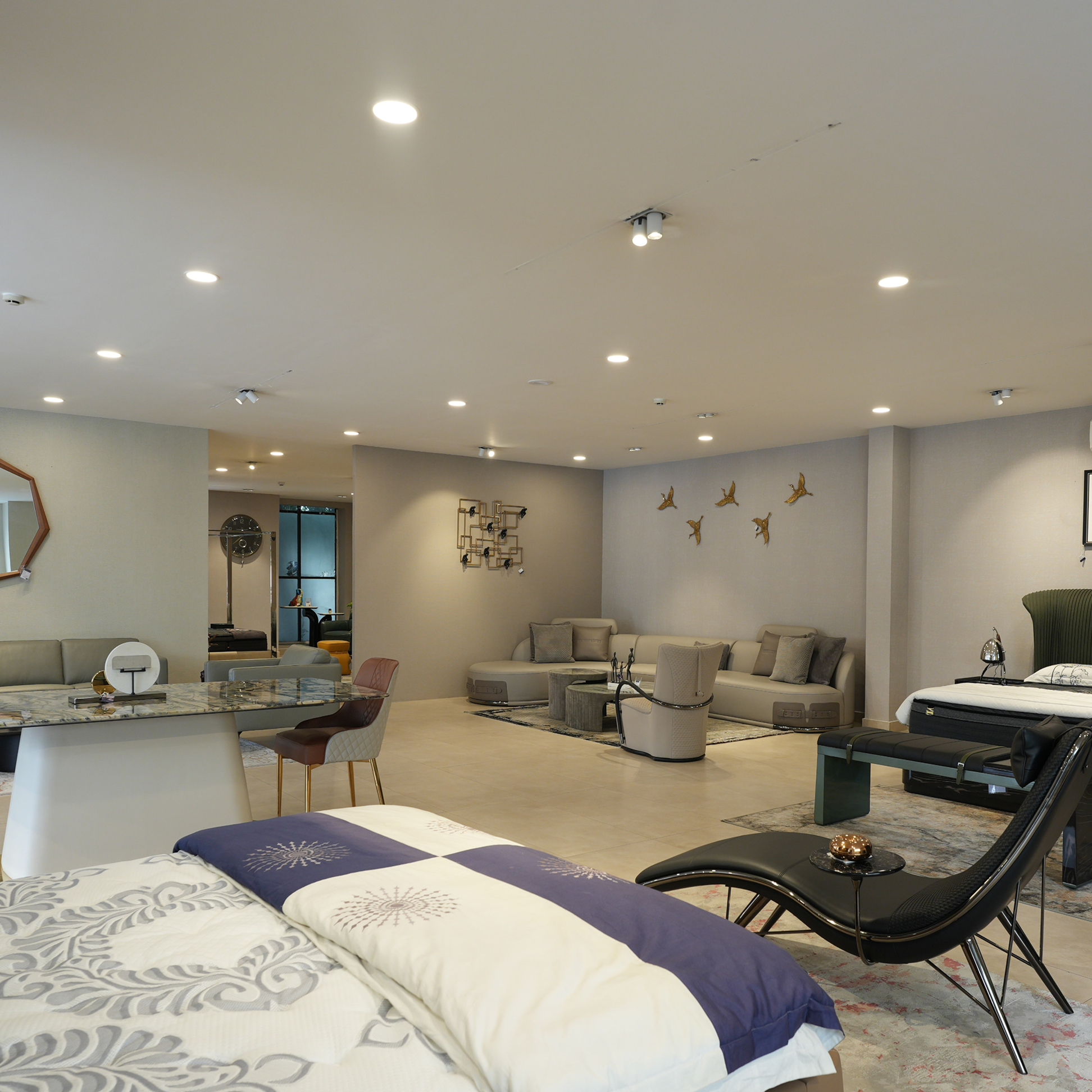

Residential, Offices, and General Ambient Lighting
Ideal for large areas, hallways, and commercial offices where the primary need is uniform, non-directional ambient light and the ceiling structure limits the depth of the available fixture recess.
The Dime Slim provides an elegant and highly efficient answer to modern general lighting challenges. This slim-profile downlight delivers comprehensive, shadow-free illumination that visually enhances any space. Achieve complete design flexibility by choosing the optimal shape and size, ensuring your environment benefits from reliable, high-quality, and visually unobtrusive ambient light.
LED
: Edison
Driver Brand
: Philips
Input Voltage
: 240V / 50hz
CCT
: 3000k, 4000k, 6500k
Housing Material
: Aluminium Die Cast
IP Rating
: IP-20
Beam Angle
: 120°
Swivel Angle
: Fixed
Operating Temp
: 0-50°c
Dimmable
: Triac / Analogue / Dali (on Request)
Product Finish
: Pkwh / Black
Reflector
: Diffused
| Model | Watt | Shape | Dimension(mm) | Cut Out(mm) | |
|---|---|---|---|---|---|

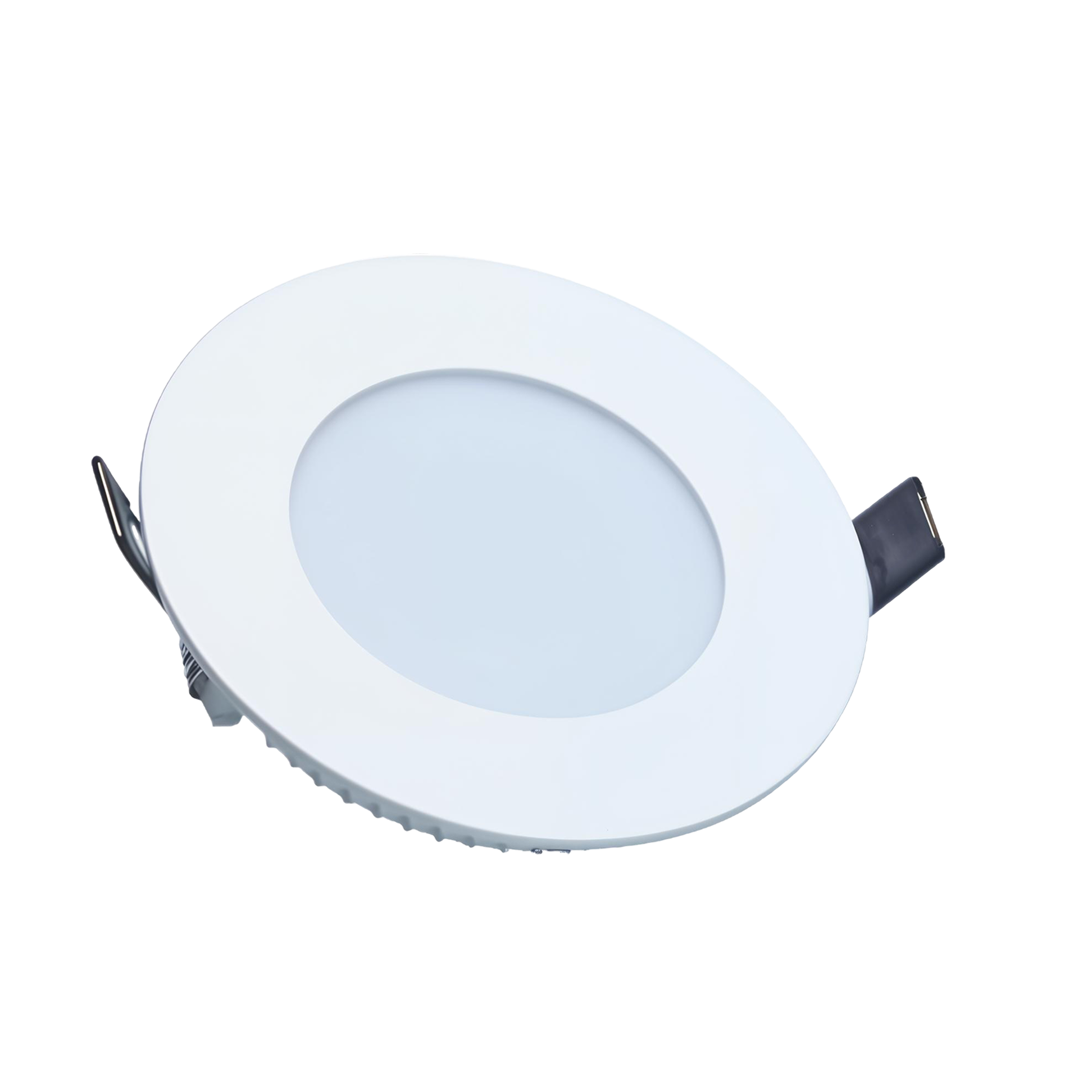

| Dime Slim | 7W | Round | Dia 105x35(H) | Dia 90 | Where To Buy |
| Dime Slim | 14W | Round | Dia 150x35(H) | Dia 125 | Where To Buy |
| Dime Slim | 20W | Round | Dia 180x40(H) | Dia 150 | Where To Buy |

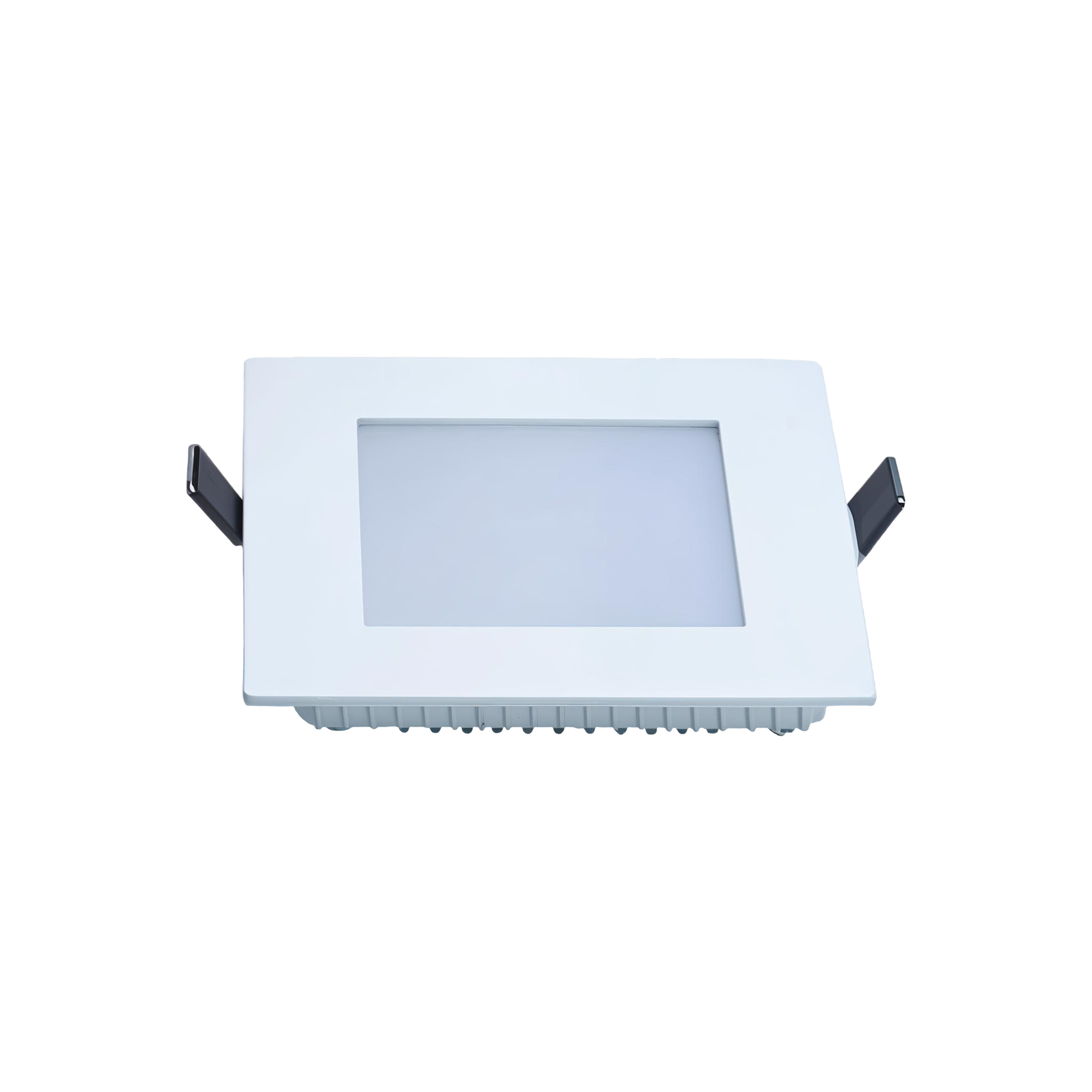

| Dime Slim | 7W | Square | 105(L)x105(W)x35(H) | 90(L)x90(W) | Where To Buy |
| Dime Slim | 14W | Square | 150(L)x150(W)x35(H) | 125(L)x125(W) | Where To Buy |
| Dime Slim | 20W | Square | 180(L)x180(W)x40(H) | 150(L)x150(W) | Where To Buy |
